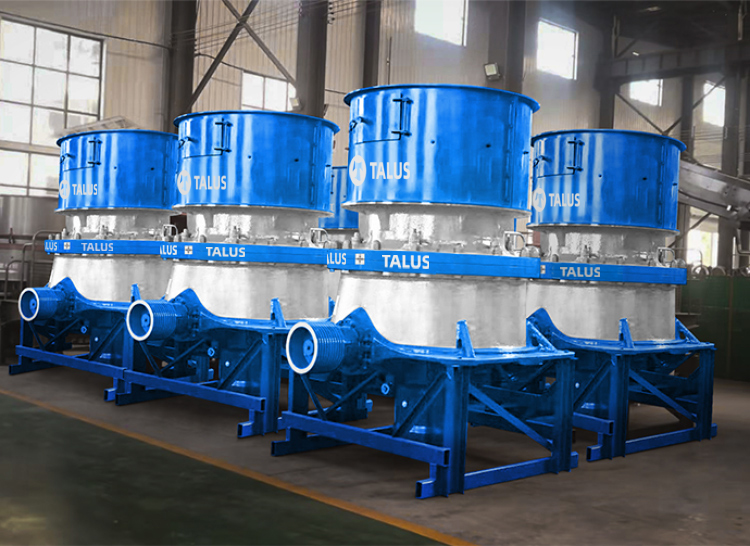

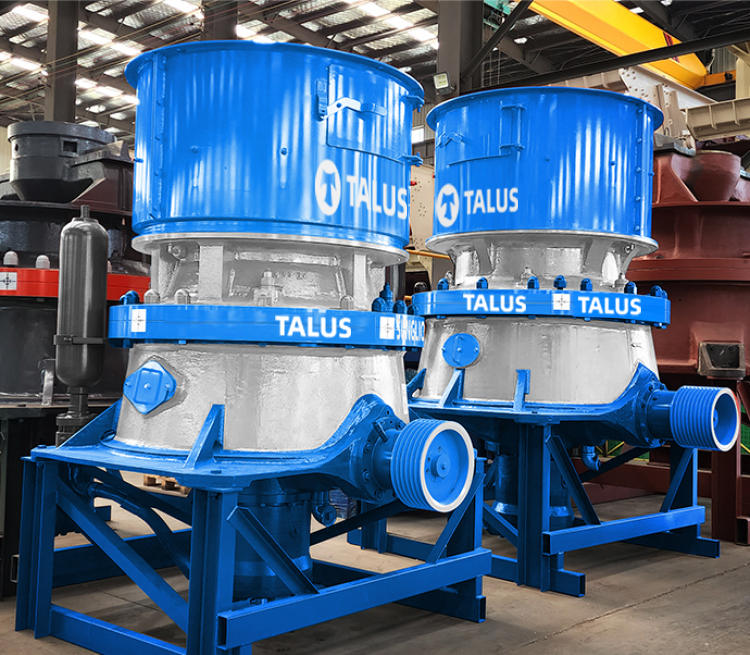

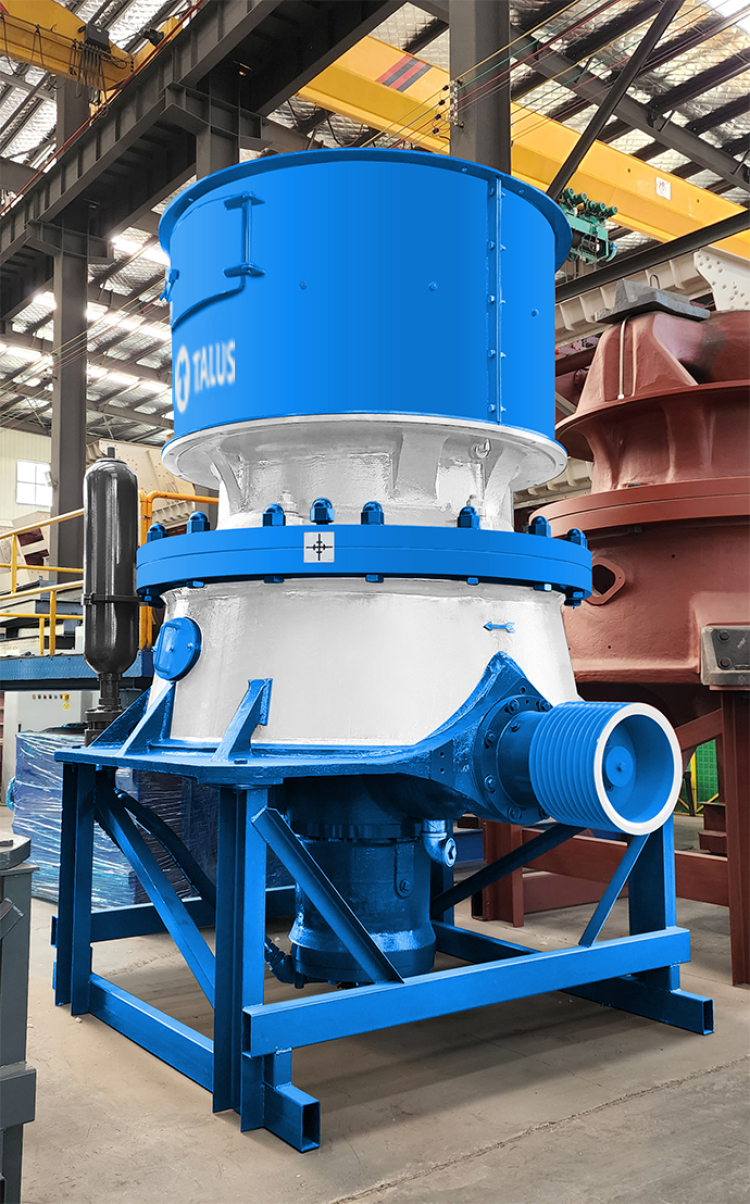

The CH single cylinder hydraulic cone crusher is developed by integrating the product technology and design concepts of international famous mining machinery enterprises. It optimizes and improves certain technical details of the products, achieving import substitution. It still adheres to the technical standards and assemblage process of European enterprises, with key components are imported from Europe or America.
High Pressure Resistance
High Crushing Ratio
Safety and Stability
Low Operation Energy Consumption
High Automatic and Intelligent Control
Good Granularity of Finished Product
Product Performance
Many core technical experts in our company have worked for 5 years in the crushing and screening division of international renowned crusher manufacturing enterprises. They are proficient in a complete technical system and quality management in spare parts production, production and assembling, installation and commissioning, and after-sales service.
Multi-layer dust-proof measures
Positive pressure dust control system keeps oil circuit clean durably.
Long-lasting capacity
Constant crushing cavity type maintains a constant maximum feeding size and effective cavity cubage throughout entire lining wear period.
Adjustable multi-cavity type
Adaptability to multiple conditions. There are 7 cavity variations (EC-EF) to suit different operation conditions.
Hydraulic support design
Automatic control of cavity clearance; Intelligent adjustment of ore discharge port, tramp iron detection; Single cylinder hydraulic system, high crushing force.
CSS (Close Side Setting)
Pressurization: Hydraulic oil is pumped from the hydraulic cylinder into the oil tank to lower movable cone to a suitable position.
Decompression: Hydraulic oil is pumped from the oil tank into the hydraulic cylinder to lift movable cone to a suitable position.

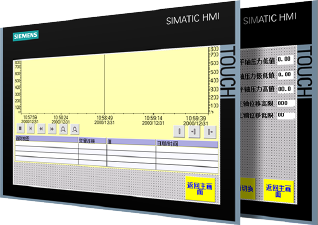

Touch Screen Control System Interface
With assistance of position sensors and pressure sensors, the main axis position and discharge opening size can be automatically regulated by hydraulic cylinders, enabling automatic control.
Advanced Control System
The touch screen interface allows for easy installation and operation, and easy modification of data according to working conditions, and access to stored historical operation data, event and alarm records.
Visual Intelligent Operation
Intelligent control and remote monitoring of the equipment can be achieved through a cell phone APP. Users can monitor feeding quantity, current, oil temperature, mail axis temperature, vibration protection and more in real-time.
Modular Box Design
The touch screen interface allows for easy installation and operation, and easy modification of data according to working conditions, and access to stored historical operation data, event and alarm records.
Multiple Automatic Control Functions
It is equipped with multiple automatic control functions such as high-temperature protection, automatic tramp iron detection, overload protection, lubricant oil flow control, fault diagnosis, discharge opening calibration and wear diagnosis etc.
Filtration system operates independently
Full-flow filter is connected in series between oil pump and main oil passages, ensuring that all lubricating oil entering the main oil passages is filtered.
Multi-layer dust-proof measures
Long-lasting capacity
Adjustable multi-cavity type
Hydraulic support design
CSS (Close Side Setting)
Touch Screen Control System Interface
Advanced Control System
Visual Intelligent Operation
Modular Box Design
Multiple Automatic Control Functions
Filtration system operates independently
Key components are imported
