Uniform Granularity of Finished Product / Wide Adjustable Discharge Range / Low Noise and Less Dust / High Crushing Ratio

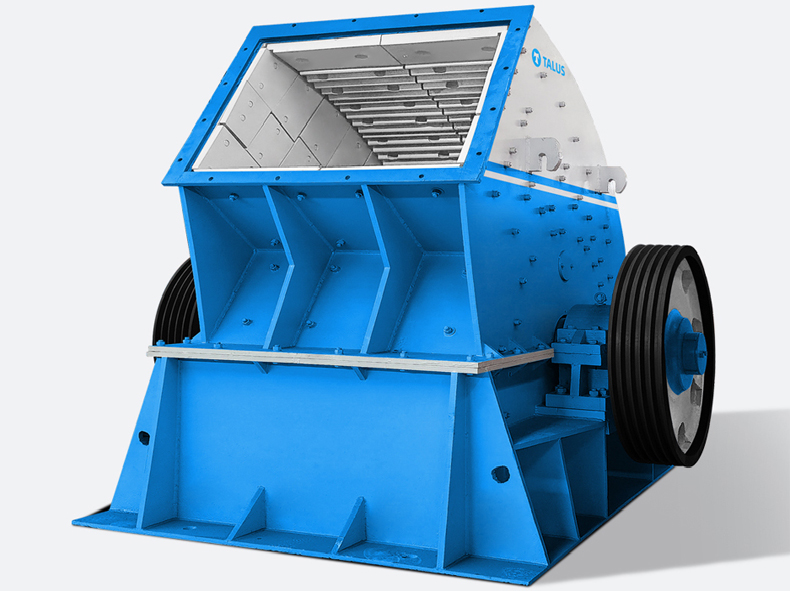

PC/PCZ Series Heavy Hammer Crusher
Processing capacity: 150-6000 t/h
High Crushing Ratio
High Production Efficiency
Safe and Stable
High Comprehensive Benefits
Easy Operation and Maintenance
Good Granularity of Finished Product
Product Introduction
The PCZ Series Heavy Hammer Crusher has characteristics of special structure, simple operation, energy saving, good granularity of finished product, adjustable discharging particle size, and costs saving, etc. The appearance and structure of the heavy hammer crusher and the impact crusher are basically the same, the only difference is the form of the rotor. The rotor of the heavy hammer crusher uses independent hammer heads that can rotate around the hammer shaft, while the rotor of the impact crusher uses high-chromium plate hammers. The heavy hammer crusher has large weight per hammer head, reasonable rotor speed, and large hammer head inertia, which can achieve the crushing effect of large feeding particle size and small discharging particle size. It can directly crush materials with a particle size of 600-1200mm to below 25mm.
Performance advantages
Large crushing ratio, Uniform particle shape
Low powder output!
① Large feeding particle size (up to 1200mm), high crushing ratio, high output (single machine output up to 2500 tons).
② Uniform finished product shape. Less flake, low powder output, meeting excellent sand and gravel standards.
Reasonable structural design
Better equipment!
① The grate-less design, change the previous phenomenon of grate bars controlling the discharging, and directly control the discharge blockage in the crushing cavity with the adjusting plate.
② Volute design with reinforced ribbed back can withstand strong impact forces internally and externally, making the machine sturdy and resistant to impact without deformation.
The practical parts of the machine are made of high-quality materials.
which have a longer service life!
① The hammer head is made of high-chromium alloy, which more than doubles the service life of ordinary high-manganese alloy hammer heads.
② The impact plate is made of high-manganese castings and is quenched and strengthened, further improving its practicality and impact resistance.
Short maintenance time, Low maintenance cost
Easy disassembly!
① Before the assembly of the rotor, static and dynamic balance tests are conducted. The main shaft is processed with excellent forgings and adopts the expansion sleeve tightening connection method to make the equipment operate more reliably.
② The overload protection and tramp iron detection devices have been optimized. When the impact crusher exceeds its own load, this device can adjust the clearance between the impact plate and the discharging opening in time to prevent the equipment from stopping due to overload.
Dual-use for dry and wet materials
Green and environmentally friendly!
① It can crush both dry and wet materials.
② Water spray can be added during crushing to reduce dust pollution, protect the health of workers and the environment, and promote green and environmental protection.
Operation Principle
The finished product can be adjusted according to requirements, with various specifications such as coarse, medium, and fine, no flakes, no smooth bodies, and multi-angles and edges to ensure compressive strength. Especially suitable for dry highways, construction and large-scale engineering materials. This crusher eliminates the primary crushing process of the jaw crusher and becomes a new model that can crush large and small materials in one go. It has a large output, high efficiency, low power, saves manpower and material resources, and reduces the cost of crushing materials. The stone crushed by this machine not only has complete specifications, but is also uniform and clear. It is a substitute for the old-fashioned jaw crusher and plate hammer crusher.
Technical Parameter
Remark: The output may vary depending on the nature or grain size of the feeding material.
| Model |
Feeding opening size (mm) |
Feeding size (mm) |
Processing Capacity (t/h) |
Motor Power (kW) |
| XGN-Z1310 |
890×1075 |
≤650 |
150~180 |
160 |
| XGN-Z1512 |
1200×900 |
≤750 |
250~320 |
160×2 |
| XGN-Z1513 |
1290×900 |
≤750 |
300~350 |
180×2 |
| XGN-Z1615 |
1500×1200 |
≤1000 |
420~500 |
220×2 |
| XGN-Z1818 |
1500×1280 |
≤1200 |
570~670 |
250×2 |
| XGN-Z1620 |
2000×1200 |
≤1200 |
800~1000 |
400×2 |
| XGN-Z1820 |
2000×1200 |
≤1200 |
1000~1200 |
450×2 |
| XGN-Z2020 |
2010×1200 |
≤1500 |
1200~1600 |
450×2 |
| XGN-Z2122 |
2240×1550 |
≤1500 |
1800~2200 |
1000 |
| XGN-Z2225 |
2530×1560 |
≤1600 |
2000~3000 |
1250 |
| XGN-Z3332 |
3300×1840 |
≤1800 |
4500~6000 |
(1250kW-6)×2 |

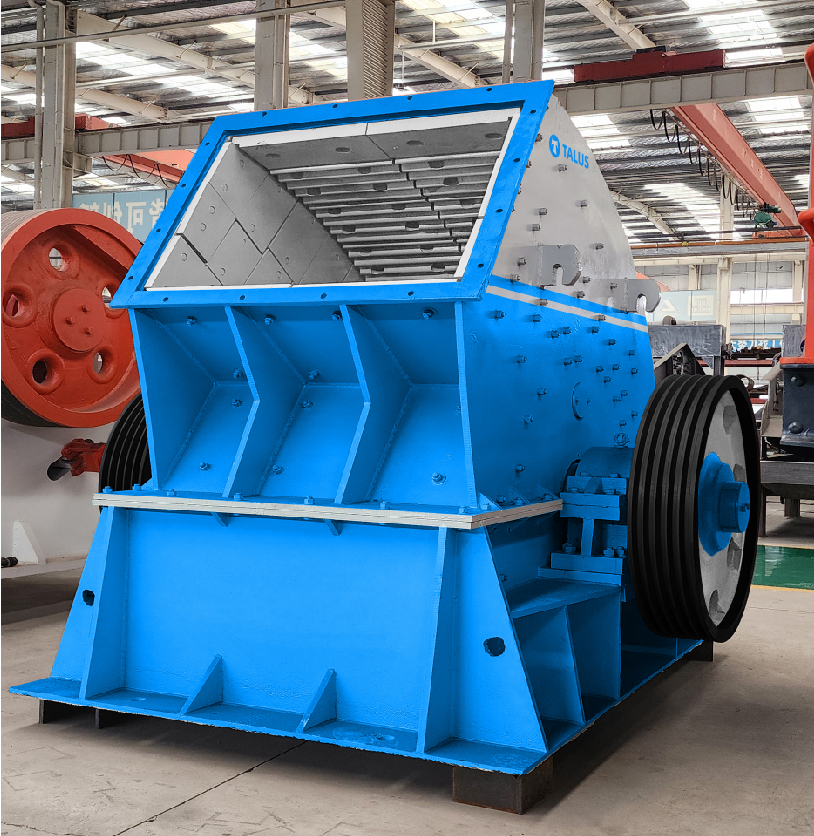

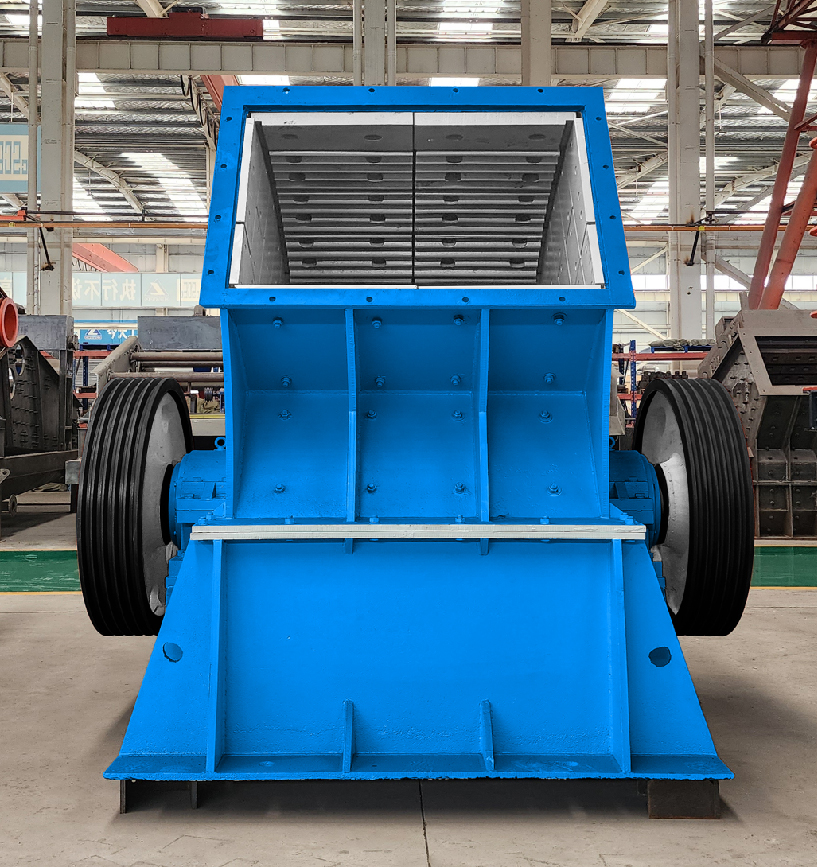

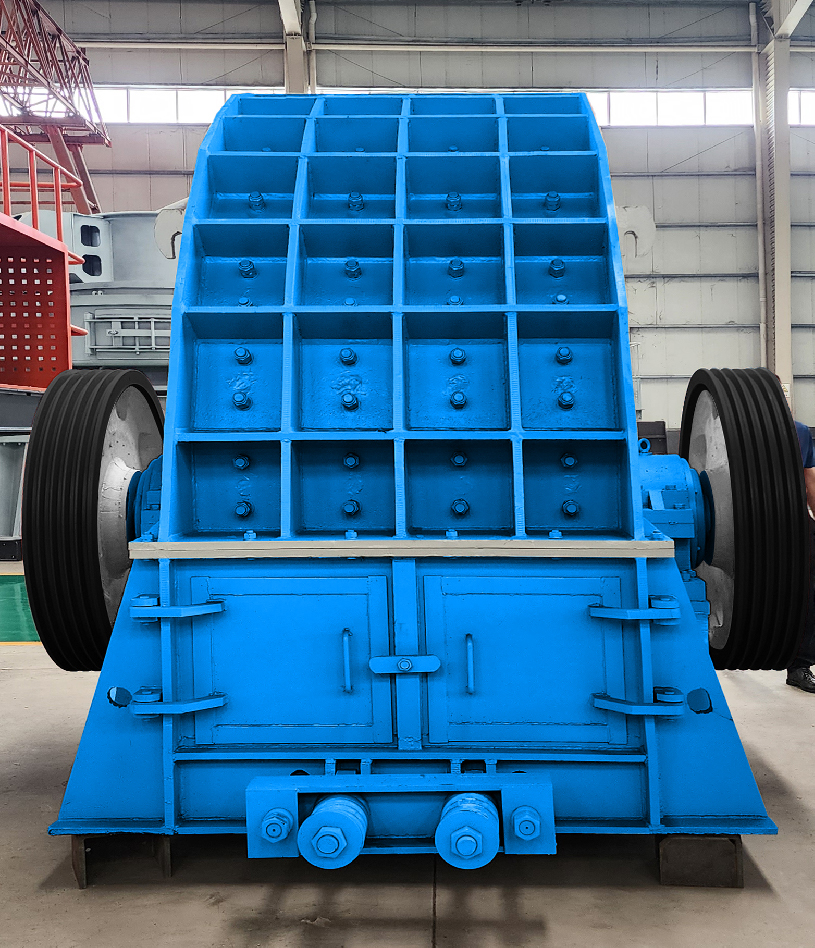

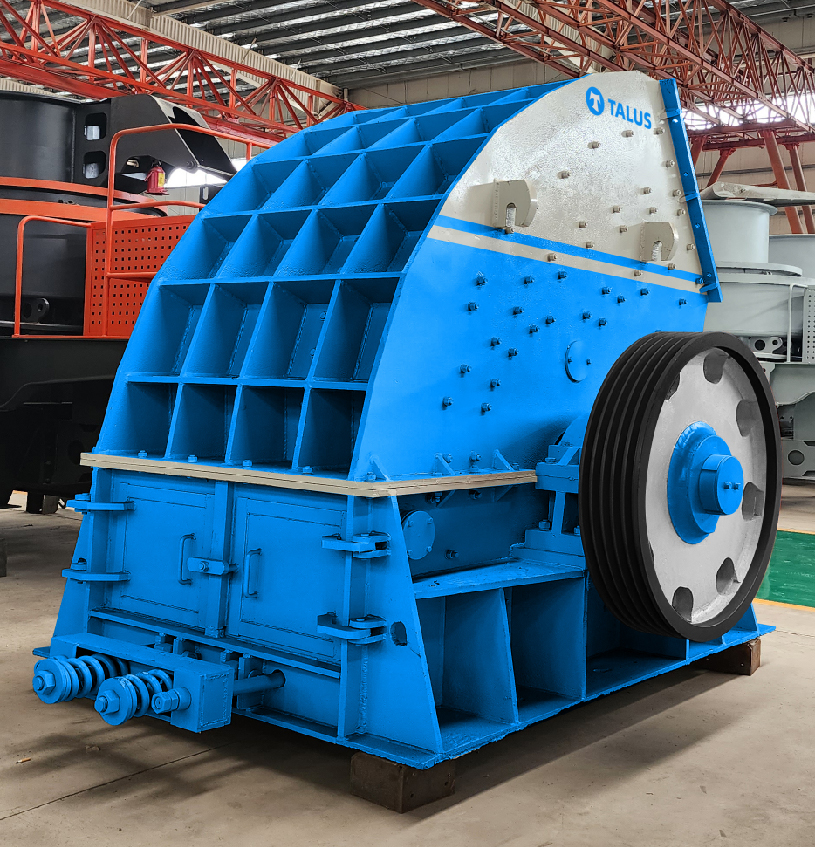

Products Show
From exterior design to internal structure, every detail has been meticulously considered and thoroughly tested.
