PE Series Jaw Crusher
Capacity: 8-160t/h
Product Introduction
The PE series jaw crusher, independently manufactured by Talus Equipment Manufacturing, is a crushing equipment with high capacity. It is mainly used for crushing various materials with a compressive strength not exceeding 320MP. It is often used as primary crusher in stone production lines and ore crushing production line. It features a large crushing ratio, high output, uniform granularity, reliable operation, easy maintenance, and low operating cost.
High crushing ratio
High production efficiency
Safety and stability
Low energy consumption
Easy operation and maintenance
Good granularity of finished products
Product Performance
Large Crushing Ratio and Uniform Granularity
① Optimized deep cavity crushing, with a large stroke and steep bracket angle of the toggle plate, and a reasonable rotation speed, resulting in a larger feeding size, higher output and more uniform granularity.
② Digital analysis of the operation of each component, heavy-duty forged eccentric shafts, high manganese steel jaw plates, and high cast steel movable jaw assemblies. The crushing ratio is as high as about 15, greatly improving production efficiency, and the capacity is 20-35% higher than that of ordinary jaw crushers with the same specifications.
Compact Structure - Stable and Reliable
① Adopts the traditional basic design principle of compound pendulum. The structure is streamlined, making it easier to operate and maintain.
② Special centralized lubrication system, convenient replacement of component, quick lubrication, and minimal maintenance workload.
Longer Service Life and Lower Production Cost
① The core parts are made of excellent high manganese steel castings, which have a longer service life, reducing the number of downtime for maintenance and lowering the production cost.
② Adopts hyperbolic jaw design to save wear and tear. The lifespan of the jaw plate can be extended by more than 3-4 times under the same process conditions.
③ The perfect machining, heat treatment and flaw detection inspection of Talus Equipment Manufacturing ensure that the eccentric shaft has enough strength and rigidity, extending its service life.
Multi-purpose and Reliable Operation
① Gasket discharge adjustment device has a large range of discharge adjustment, reliable operation and flexible usage, meeting various processing requirements of customers.
② Low operating noise and dust-proof equipment can be optional equipped, in line with national environmental standards.
Operation Principle

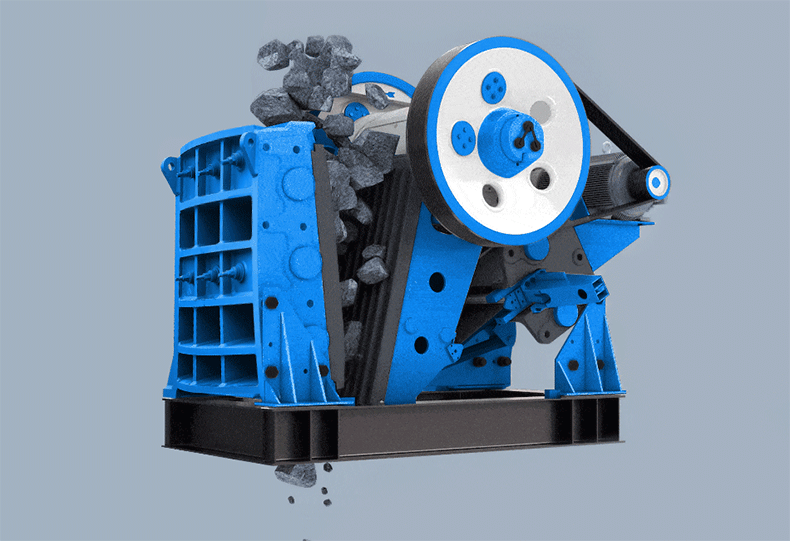

The PE series crushers work in an extrusion driven mode. The operation principle is as follows: The electric motor drives the belt and pulley, which in return drives the eccentric shaft to swing the movable jaw up and down. When the movable jaw raises, the angle between the toggle plate and the movable jaw increases, pushing the movable jaw plate closer to the fixed jaw plate. At the same time, the material is crushed or chopped. When the moving jaw descends, the angle between toggle plate and moving jaw decreases, and the moving jaw plate leaves the fixed jaw plate away under the action of spring and tension rod. Meanwhile the crushed material is discharged from hopper outlet of the crushing cavity. With the continuous rotation of the electric motor, the movable jaw crushes and discharges materials periodically to achieve mass production.
Technical Parameter
Multiple types are available, ensuring that there is always a suitable one for you.
| Model |
Max. Feeding size (mm) |
Capacity (t/h) |
| PE-1600×2100 |
1500 |
1300-2200 |
| PE-1500×1800 |
1200 |
500-1000 |
| PE-1200×1500 |
1020 |
400-800 |
| PE-1000×1200 |
850 |
280-560 |
| PE-900×1200 |
750 |
220-450 |
| PE-750×1060 |
630 |
110-320 |
| PE-600×900 |
500 |
50-180 |
| PE-500×750 |
425 |
40-110 |
| PE-400×600 |
340 |
16-60 |
| PE-250×400 |
210 |
5-20 |
| PE-200×350 |
180 |
3-10 |
| PE-200×300 |
180 |
2-6 |
| PE-150×250 |
125 |
1-3 |
Remark: The output may vary depending on the nature or grain size of the feeding material.
Products Structure
From exterior design to internal structure, every detail has been meticulously considered and thoroughly tested.

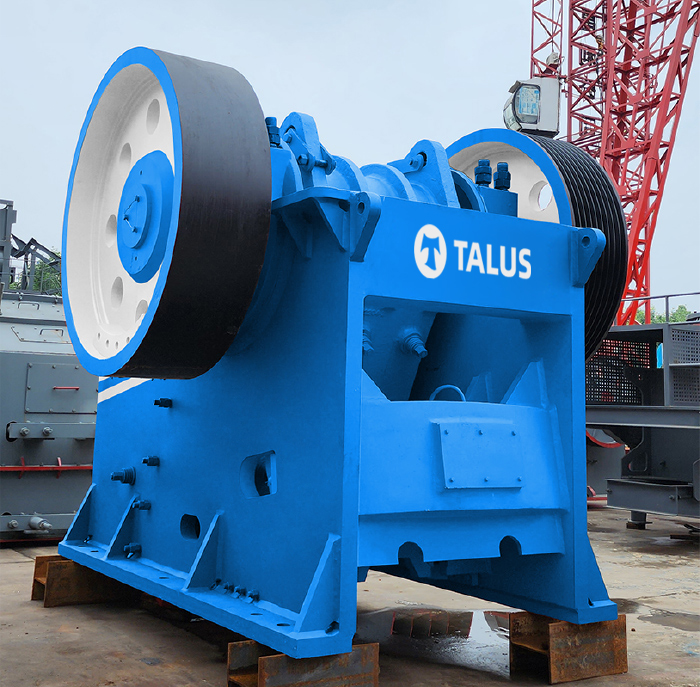

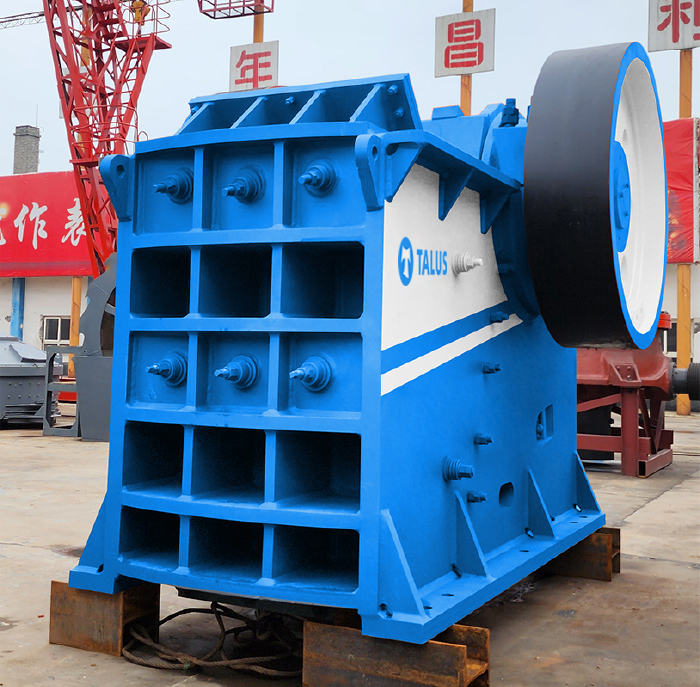

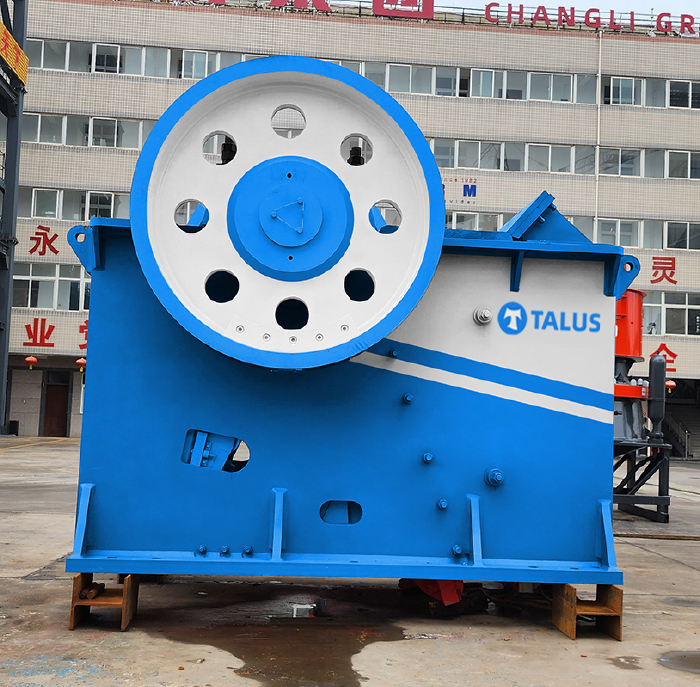

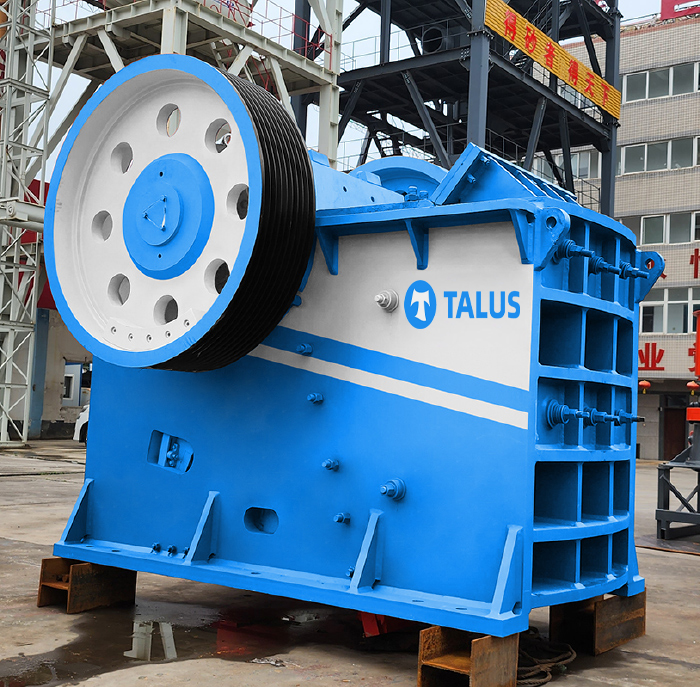

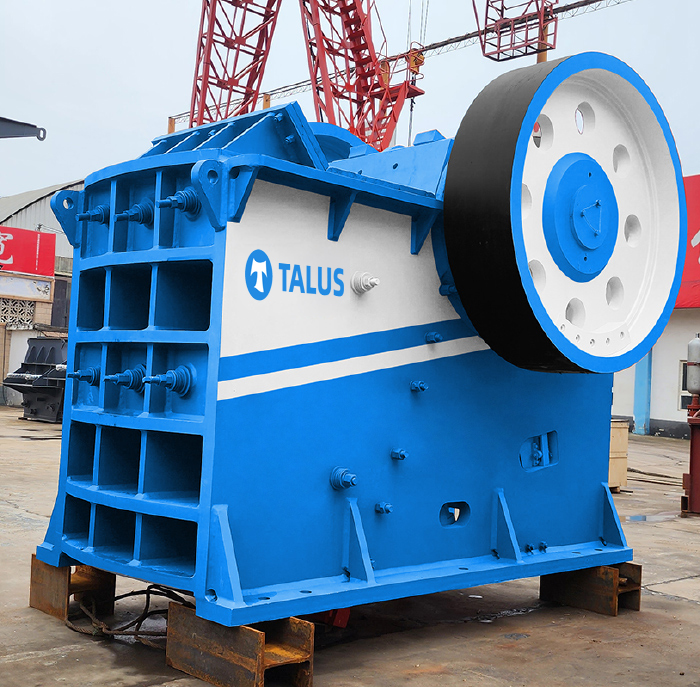

Products Show
From exterior design to internal structure, every detail has been meticulously considered and thoroughly tested.
